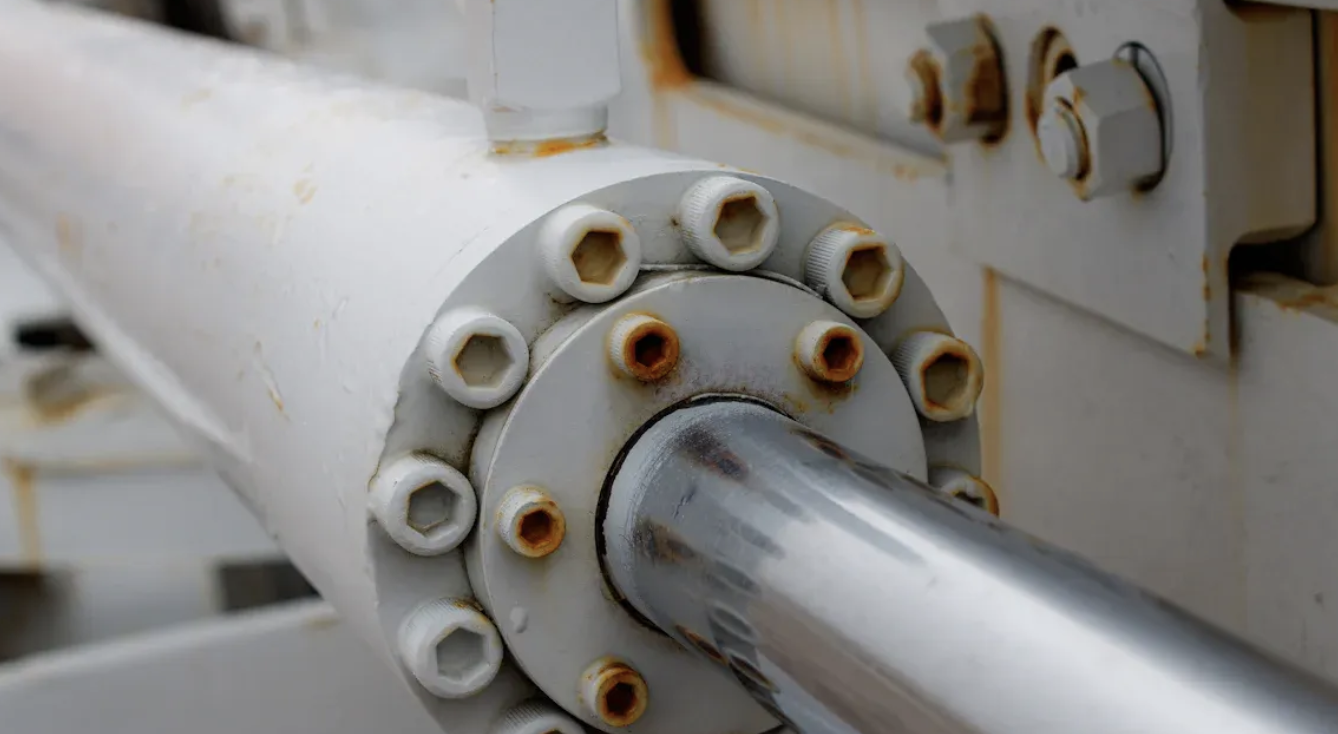

Honed tubes play a vital role in how well a hydraulic cylinder works. You need tubes that offer high precision, smooth surfaces, and strong durability. These features help your system run smoothly and last longer. When you use quality honed tubes, you boost efficiency and keep your equipment reliable. This means fewer breakdowns and longer service life for your hydraulic cylinder tube.
Honed tubes have a very smooth inside surface that reduces friction and wear in hydraulic cylinders.
Precision honing ensures tight tolerances, perfect roundness, and straightness for better piston fit and sealing.
Seamless honed tubes offer strong pressure resistance and long-lasting durability under tough conditions.
Using honed tubes improves hydraulic system efficiency by up to 10%, saving energy and reducing heat.
High-quality honed tubes extend the lifespan of seals and pistons, lowering repair costs and downtime.
Poor-quality or non-honed tubes can cause leaks, cracks, and system failures, risking safety and performance.
Choose tubes with proper material grades, smooth finishes, and certification to ensure reliability and safety.
Regular inspection of honed tubes helps detect wear early and keeps hydraulic systems running smoothly.
You may wonder what makes honed tubes special. Honed tubes are steel pipes with a very smooth and polished inner surface. Manufacturers use a process called honing to remove tiny imperfections inside the tube. This creates a mirror-like finish that helps reduce friction and wear. When you use honed tubes in hydraulic systems, you get better sealing and smoother movement for pistons and seals.
Honed tubes stand out because of their tight tolerances and precise dimensions. The inside diameter, roundness, and straightness all meet strict standards. This means the tube fits perfectly with other parts in a hydraulic cylinder. You can see the difference in performance when you use a honed tube instead of a regular one.
Tip: A smoother tube means less friction, which leads to longer-lasting equipment and fewer repairs.
Here is a table that shows some important features and measurements of honed tubes:
| Parameter | Typical Value / Description | Why It Matters |
|---|---|---|
| Surface Roughness (Ra) | 0.2 - 0.3 µm | Reduces wear and helps smooth movement |
| Tube Roundness Error | 0.0063 mm | Ensures reliable sealing |
| Inside Diameter (ID) | ISO H8/H9 tolerance (e.g., ±0.039 mm) | Prevents leaks and fits seals properly |
| Straightness | 0.5 mm/m to 1 mm/m | Stops piston binding |
| Wall Thickness | Meets pressure needs | Keeps tube strong under high pressure |
You will find honed tubes in many industries, such as construction, automotive, and drilling. Changzhou Chengxin is a leading manufacturer of high precision steel tubes. They focus on quality, durability, and meeting customer needs worldwide.
The honing process is what gives these tubes their unique qualities. During honing, a tool with abrasive stones rotates and moves back and forth inside the tube. This action removes small amounts of material and corrects the shape of the bore. You get a tube with a perfect round shape and a very smooth surface.
The steps in making a honed tube include:
Selecting strong, high-quality steel.
Cutting the steel to the right length.
Boring the tube to create the initial hole.
Honing the inside to achieve the final size and finish.
Inspecting the tube for straightness, roundness, and smoothness.
Each step uses strict quality checks to make sure the tube meets high standards.
The surface finish is one of the most important parts of a honed tube. A good finish means the tube has a cross-hatch pattern inside. This pattern holds oil and helps seals work better. A smoother surface also means less friction, which keeps the system running efficiently.
You can see the impact of a great surface finish in how long the tube lasts and how well it performs. For example, tests show that tubes with a surface roughness of 0.2 - 0.3 µm have less wear and better efficiency. The right finish also helps prevent leaks and keeps the hydraulic cylinder tube working smoothly for a long time.
You want your hydraulic cylinder tube to have a smooth interior. This smoothness helps the piston move easily inside the tube. When the inside surface is rough, the piston can catch or drag, which causes wear and slows down your system. Honed tubes solve this problem by using special honing tools that polish the inside surface until it feels almost like glass.
Engineers use advanced tools like profilometers and SEM imaging to measure how smooth the inside of the tube is.
Studies show that changing the speed of the honing head and the size of the abrasive grains can make the surface even smoother.
Many factories use a three-stage honing process: roughing, semi-finishing, and finishing. Some add flexible honing at the end to make the surface even more consistent.
These steps lower the surface roughness and help the tube last longer.
A smoother tube means less friction. Your hydraulic cylinder tube will run more quietly and need fewer repairs. You get better performance and save money over time.
Sealing and sliding are two of the most important jobs for a hydraulic cylinder tube. The seals inside the cylinder must fit tightly against the tube wall. If the wall is rough or uneven, the seals can wear out quickly or even leak. Honed tubes have a surface roughness better than Ra 0.4μm, which helps seals last longer and keeps oil from leaking out.
Tight tolerances for the inside diameter, wall thickness, and straightness make sure the piston and seals fit perfectly.
Good straightness stops the tube from bending or warping during use.
The right hardness and strong materials help the tube handle stress and resist wear.
When you use a high-quality hydraulic cylinder tube, you get smooth sliding for the piston and better sealing. This means your system works more efficiently and you avoid costly leaks.
Tip: Always check for material test certificates when you buy tubes. These certificates show the tube meets the right standards for strength and durability.
Hydraulic systems often work under very high pressure. Your hydraulic cylinder tube must be strong enough to handle this pressure without cracking or deforming. Honed tubes use seamless cold drawn steel, which gives them extra strength and reliability.
The tube’s hardness and wall thickness help it resist dents and damage.
High-quality steel, like ST52/E355 or SAE 1026, gives the tube the toughness it needs.
The precise finish and tight tolerances keep the tube from leaking or bursting under pressure.
A well-made honed tube lets your hydraulic system run safely, even in tough conditions. You can trust your equipment to work hard without failing.
You want your hydraulic system to run smoothly. Honed tubes help you achieve this by reducing friction inside the cylinder. The smooth, mirror-like surface inside the tube lets the piston glide with very little resistance. When you have less friction, you use less energy to move the piston. This means your system does not have to work as hard.
Less friction means less heat. Your hydraulic oil stays cooler, and your seals last longer.
The piston moves quietly and does not stick or jerk.
You avoid scratches and damage inside the tube.
Note: Lower friction helps you save money on repairs and keeps your equipment running longer.
You want your machines to work efficiently. Honed tubes help you get the most out of your hydraulic cylinder tube. The smooth surface lets the piston move quickly and easily. This means your system responds faster when you need it.
You get better control over your equipment.
Your machines use less power to do the same job.
You reduce energy loss because the system does not waste force fighting friction.
Studies show that hydraulic systems with honed tubes can improve efficiency by up to 10%. This means you finish jobs faster and use less fuel or electricity.
You want your equipment to last as long as possible. Honed tubes help you reach this goal. The smooth surface reduces wear on the piston and seals. When parts do not rub harshly against each other, they do not break down as quickly.
Your seals stay tight and do not leak.
The tube resists scratches and dents.
You avoid costly downtime for repairs.
A well-made honed tube can last for many years, even in tough working conditions. You get more value from your investment and spend less on replacements.
You want your hydraulic system to work every time you need it. Reliability means your equipment runs smoothly, day after day, with fewer breakdowns. Honed tubes help you achieve this goal by providing a consistent and stable surface inside the cylinder.
When you use a honed tube, you reduce the risk of sudden failures. The smooth inner wall keeps the piston and seals moving without sticking or catching. This steady movement lowers the chance of leaks or pressure loss. You can trust your hydraulic cylinder to perform well, even in tough conditions.
Here are some ways honed tubes improve reliability:
Consistent Performance: The precise finish inside the tube keeps the piston moving at the same speed every time. You get predictable results from your machine.
Fewer Repairs: The smooth surface reduces wear on seals and pistons. You spend less time fixing leaks or replacing parts.
Better Safety: Reliable hydraulic systems help prevent accidents. When your equipment works as expected, you protect both workers and machinery.
Tip: Regularly check your hydraulic cylinder tube for signs of wear. Early detection helps you avoid unexpected downtime.
Many industries, such as construction and manufacturing, rely on honed tubes for critical tasks. You can count on these tubes to keep your operations running without interruption. When you choose high-quality honed tubes, you invest in the long-term reliability of your entire hydraulic system.
When you compare a honed tube to a non-honed tube, you see big differences in how they perform inside a hydraulic cylinder tube. Honed tubes have a very smooth and even inner surface. This smoothness helps reduce wear on seals and pistons. You get better sealing, less friction, and longer life for your equipment.
Non-honed tubes often have rough spots or uneven surfaces. These flaws can cause seals to wear out quickly or even leak. The piston may not move smoothly, which can lead to more repairs and downtime.
Here are some key points to consider:
Honed tubes have a surface roughness better than Ra 0.4 µm, which means less wear and better seal life.
They keep high accuracy in diameter and roundness, so parts fit together perfectly.
Excellent straightness prevents bending or deformation during use.
The right hardness and strong materials help the tube resist stress and wear.
A honed hydraulic cylinder tube gives you reliability and longer service life, while a non-honed tube may lead to early failure.
You also need to choose between seamless and welded tubes for your hydraulic cylinder tube. Seamless tubes are made from a single piece of steel. This makes them stronger and better at handling high pressure. Welded tubes have a seam where the metal was joined, which can be a weak spot.
Let’s look at the differences in a table:
| Feature | Seamless Tube | Welded Tube |
|---|---|---|
| Strength | High, no weak seams | Lower, seam can be a weak point |
| Pressure Resistance | Excellent, handles high pressure | Good, but not as strong as seamless |
| Surface Quality | Very smooth after honing | May have slight imperfections |
| Durability | Long-lasting, less risk of failure | Can wear out faster |
Seamless honed tubes are the top choice for hydraulic cylinder tube applications. They combine strength, smoothness, and durability.
You might notice that honed and seamless tubes cost more than non-honed or welded tubes. However, you get much more value for your money. Honed tubes last longer, need fewer repairs, and help your hydraulic cylinder tube work better. You save money over time because you avoid leaks, breakdowns, and early replacements.
Honed tubes extend the life of seals and pistons.
Seamless construction means fewer failures and less downtime.
The smooth finish improves efficiency, saving energy and reducing costs.
Investing in a high-quality hydraulic cylinder tube pays off with better performance and lower maintenance costs.
You want your hydraulic system to work under high pressure without failure. Seamless construction gives you this strength. Manufacturers create honed tubes from seamless parent tubes like Cold Drawn Seamless (CDS), Hot Finished Seamless (HFS), and Drawn Over Mandrel (DOM). These methods remove weak points that can appear in welded tubes. You get a tube with uniform mechanical properties and strong structural integrity.
Seamless tubes handle high pressure and heavy loads.
You avoid weak seams that could crack or leak.
The tube stays strong even after years of use.
Seamless honed tubes meet international standards such as EN 10305, DIN 2391, ASTM A519, and JIS G3445. These standards make sure your tube performs well and fits with other parts.
Tip: Seamless tubes give you peace of mind when you need reliable performance in tough conditions.
Precision matters in every hydraulic system. Honed tubes offer tight tolerance control, which means the inside diameter, roundness, and straightness stay within strict limits. You get a tube that fits perfectly with pistons and seals.
ID tolerance classes like H7, H8, and H9 are common. These classes keep the inside diameter accurate, often within ±0.039 mm.
Straightness can be as tight as 0.5 mm per meter. This helps the piston move smoothly.
Surface roughness is as low as Ra 0.4 microns. This smooth finish reduces friction and wear.
A table below shows some typical tolerance values:
| Parameter | Typical Value |
|---|---|
| ID Tolerance | H7, H8, H9 |
| Straightness | 0.5 mm per meter |
| Surface Roughness | Max Ra 0.4 microns |
When you choose a tube with tight tolerances, you help your system run quietly and efficiently. You also reduce the risk of leaks and early failures.
You want your equipment to last, even in harsh environments. Honed tubes use special materials and coatings to fight corrosion. Stainless steel grades like TP 304, 316L, and 316Ti are popular choices. These steels resist rust and chemical damage.
Manufacturers often apply anti-rust oil on both the inside and outside surfaces.
The honing process creates a cross-hatch pattern inside the tube. This pattern holds oil, which protects the metal and helps seals last longer.
Tubes made from stainless steel work well in wet, salty, or chemical-heavy places.
Note: Corrosion resistance means fewer repairs and longer service life for your equipment.
You get a tube that stands up to tough jobs and keeps your hydraulic system running strong.
When you use non-honed or low-quality tubes, you put your hydraulic system at risk. These tubes can fail in several ways. You might see cracks form along the tube wall. Sometimes, the tube bends or warps under pressure. Leaks can start at weak spots, especially if the tube has rough or uneven surfaces. Seals may wear out quickly because they rub against sharp edges or rough patches.
Here are some common failure modes you should watch for:
Cracking: The tube can split when it cannot handle the pressure.
Leaking: Oil escapes through small holes or gaps.
Deformation: The tube bends or loses its shape.
Seal Damage: Seals break down faster on rough surfaces.
Alert: If you notice any of these problems, stop using the hydraulic cylinder tube right away to prevent bigger issues.
Inferior tubes can cause big problems for your whole hydraulic system. When a tube fails, your machine may stop working. You might lose pressure, which means your equipment cannot lift, push, or move as it should. Repairs can take a lot of time and cost a lot of money.
A table below shows how poor-quality tubes can affect your system:
| Problem | Result |
|---|---|
| Leaks | Loss of hydraulic fluid |
| Cracks | Sudden system shutdown |
| Deformation | Poor piston movement |
| Seal failure | Frequent maintenance needed |
You want your machines to work well every day. Using the right hydraulic cylinder tube helps you avoid these problems and keeps your system running smoothly.
Safety should always come first. Low-quality tubes can put you and your team in danger. If a tube bursts, high-pressure oil can spray out. This can hurt people nearby. A sudden failure might also cause heavy equipment to drop or move without warning.
You can lower these risks by choosing tubes that meet strict quality standards. Always check for certifications and test results before you buy. Make sure your hydraulic cylinder tube comes from a trusted source.
Tip: Regular inspections help you catch problems early and keep everyone safe.
You want your hydraulic system to run smoothly and last a long time. Choosing the right tube is the first step. Start by checking the material grade. Strong materials like ST52, CK45, and E355 work well for most hydraulic cylinder tube needs. Look for tubes with a smooth inner surface. A surface roughness between 0.2 and 0.4 microns helps reduce wear and keeps seals working longer.
Check the dimensional tolerance. Tight tolerances, such as ISO H7 or H8, make sure the piston fits perfectly. Straightness matters too. Tubes with a straightness of 0.5 mm per meter help the piston move without sticking. You should also consider the surface treatment. Anti-rust oil coatings protect the tube from corrosion.
Tip: Always match the tube’s pressure rating to your system’s needs. This helps prevent failures and keeps your equipment safe.
You want a supplier you can trust. Changzhou Chengxin stands out as a leading manufacturer of high precision steel tubes. Since 2008, they have focused on quality, innovation, and customer satisfaction. Their product range covers hydraulic cylinder tubes, cold drawn steel tubes, ERW steel tubes, and more. You can find tubes for construction, automotive, machinery, and drilling industries.
Changzhou Chengxin uses advanced technology and strict quality control. Their tubes meet international standards like DIN 2391, EN10305, ASTM A519, and JIS G3445. You get products with tight tolerances, smooth finishes, and strong corrosion resistance. The company also offers custom solutions to fit your exact needs. Their team checks every tube for straightness, roundness, and surface quality before shipping.
Note: Choosing a trusted brand like Changzhou Chengxin helps you avoid costly downtime and repairs.
You should always inspect your tubes before installation. Look for a smooth, mirror-like finish inside the tube. Check the straightness and measure the inside diameter. Make sure the tube meets the required tolerance class. Review the material test certificate to confirm the grade and quality.
Here is a table of important inspection and quality assurance metrics:
| Metric | Specification / Standard |
|---|---|
| Surface Roughness (Ra) | 0.2 to 0.4 µm |
| Dimensional Tolerance | ISO H7, H8, H9, H10 |
| Straightness | 0.5 mm per meter |
| Material Grades | ST52, CK45, E355, 16Mn, SAE1020, SAE1045, etc. |
| Quality Standards | DIN 2391, EN10305, ASTM A519, JIS G3445 |
| Surface Treatment | Anti-rust oil coating inside and outside |
You can also ask for ultrasonic testing, hardness tests, and pressure tests. These checks help you confirm the tube will perform well in your hydraulic cylinder tube system.
You now see why honed tubes matter for your hydraulic system. They give you smooth movement, strong sealing, and long-lasting performance. When you choose quality tubes, you avoid costly repairs and downtime. Trust changzhou chengxin for reliable solutions. Use the selection tips from this guide to pick the best tube for your needs. Your equipment will thank you with better results every day.
A honed tube is a steel tube with a very smooth and polished inside surface. You use it in hydraulic cylinders to help pistons move easily and seals last longer.
You need honed tubes for smooth piston movement and tight sealing. The polished surface reduces friction and wear. This helps your hydraulic cylinder work better and last longer.
You should look for a mirror-like finish inside the tube. Check the straightness and measure the inside diameter. Always ask for a material test certificate from your supplier.
You can use non-honed tubes, but you risk leaks, faster wear, and poor performance. Honed tubes give you better sealing and longer service life.
You get the best results with strong steel grades like ST52, CK45, and E355. These materials handle high pressure and resist wear.
The smooth inside surface lets seals fit tightly against the tube wall. This tight fit stops oil from leaking out of your hydraulic cylinder.
You should inspect your tubes during regular maintenance. Look for scratches, dents, or signs of wear. Early checks help you avoid bigger problems later.
You can buy high-quality honed tubes from trusted manufacturers like Changzhou Chengxin. They offer strict quality control and a wide range of products for different industries.
