Cold Drawn Steel Tubes vs. Hot Rolled Tubes: 7 Key Advantages Engineers Need to Know

What Is a Cold Drawn Steel Tube? A Simple Explanation

A cold drawn steel tube is produced by pulling a steel tube through a precision die — and often over an internal mandrel — at room temperature. This mechanical deformation refines the tube's dimensions and simultaneously strengthens the material. There are two main types:

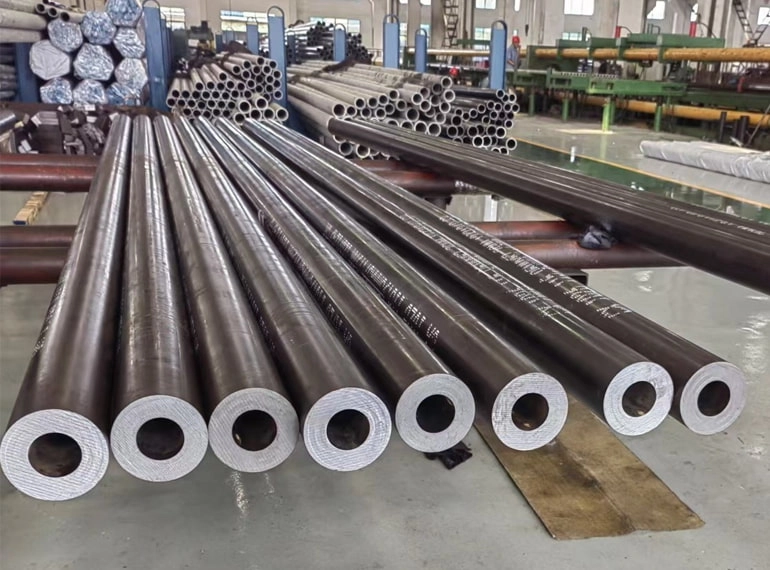

• Cold Drawn Seamless (CDS) Tube — starts from a seamless hot-pierced billet, then cold drawn to final size. No weld seam, ideal for high-pressure applications.

• Cold Drawn Welded (CDW) Tube / DOM Tube — starts from an electric resistance welded (ERW) tube, then drawn over a mandrel, which removes the internal weld flash and produces a near-seamless internal surface.

Hot rolled tubes, by contrast, are shaped at temperatures above 900 °C (1,650 °F), where steel is soft and malleable. While this makes production faster and more economical at large scales, the cooling process introduces dimensional variability, surface scale, and residual stress patterns that cold drawing eliminates.

7 Main Advantages of Cold Drawn Steel Tubes Over Hot Rolled Tubes

Advantage 1: Dimensional Accuracy That Hot Rolling Cannot Achieve

One of the most important factors when sourcing steel tubes for engineering projects is whether the tube will fit — first time, every time. Hot rolled tubes cool unevenly after forming, which causes the metal to contract inconsistently. The result is dimensional variation that often reaches ±1% of outer diameter or more on standard hot rolled product.

Cold drawn steel tubes pass through a hardened die at room temperature. The die geometry is fixed, so every tube produced in a batch carries the same outer diameter within very tight tolerances. Under EN 10305-1 and EN 10305-2 (the main European standards for precision steel tubes), OD tolerances are typically specified at ±0.05 mm to ±0.10 mm for common size ranges.

For engineers designing hydraulic cylinders, pneumatic actuators, or automotive steering columns, these numbers are the difference between a component that assembles with minimal effort and one that requires expensive secondary machining to fit.

Advantage 2: Greater Mechanical Strength Through Strain Hardening

When a steel tube is drawn through a die at room temperature, the metal crystals are deformed and elongated. This process — known as strain hardening or work hardening — increases the dislocation density within the steel's microstructure, making it harder for further deformation to occur. The practical result is a measurable increase in yield strength and tensile strength.

Research published on AZoM confirms that cold working can increase hardness by approximately 20% compared to the base material's original state, and that cold-rolled or cold-drawn steel routinely achieves tensile strength values 15–25% higher than equivalent hot rolled product of the same steel grade.

This means a buyer can often achieve the same load-bearing performance using a cold drawn steel tube with a thinner wall — saving material weight and cost while maintaining structural integrity. For applications like automotive shock absorbers, agricultural machinery frames, or hydraulic cylinder barrels, this strength advantage is a core reason why cold drawn tubes are specified by design engineers worldwide.

Advantage 3: Smoother Surface Finish — Inside and Out

Hot rolled tubes emerge from the rolling mill with a layer of iron oxide scale on their surfaces. This rough, flaky coating must be removed before most downstream uses — adding cost and processing time. Even after descaling, the surface of a hot rolled tube retains a relatively rough texture compared to cold drawn product.

Cold drawn steel tubes are processed without heat, so no scale forms. The die and mandrel burnish the outer and inner surfaces simultaneously, producing a clean, bright finish. Studies show that cold-rolled or cold-drawn surfaces can be up to ten times smoother than hot-rolled equivalents in terms of surface roughness height (Ra), a standard measure of surface irregularities.

For hydraulic cylinder applications, a smooth inner bore is not merely cosmetic — it directly affects seal life, fluid efficiency, and the need for honing. CHENGXIN's cold drawn seamless tubes and CDW tubes are engineered to arrive with surfaces ready for assembly or light honing — dramatically reducing total part cost.

Advantage 4: Excellent Concentricity and Wall Thickness Uniformity

Concentricity refers to how precisely the inner bore sits at the centre of the outer diameter. Poor concentricity means one side of the tube wall is thicker than the other — a problem that can cause premature seal failure in cylinders, vibration in rotating shafts, and stress concentrations in structural parts.

Cold drawn welded tubes (CDW / DOM tubing) are particularly noted for outstanding concentricity. Because the tube is drawn over a precisely machined mandrel that controls the inner diameter while the outer die controls the OD simultaneously, wall thickness variation is minimised around the entire cross-section. This is one reason CHENGXIN's EN 10305-2 CDW tubes are specified for automotive steering columns and shock absorber bodies, where eccentricity causes handling problems.

Hot rolled tubes — especially those produced from standard ERW or SAW (submerged arc welded) processes — have no such inner-surface control. Wall thickness eccentricity is a known and accepted characteristic of hot rolled product.

Advantage 5: Lower Total Cost Through Reduced Machining

A common misconception is that hot rolled tube is simply "cheaper" than cold drawn tube. While the raw material cost per kilogram is often lower for hot rolled product, this calculation ignores what happens next on the production floor.

Because hot rolled tubes have rough surfaces, loose tolerances, and high eccentricity, they typically require:

• External turning or grinding to achieve dimensional accuracy

• Internal boring or honing to achieve surface roughness targets

• Higher scrap and rejection rates during tight-tolerance assembly

• Additional inspection time to sort dimensional outliers

Cold drawn steel tubes arrive at the correct dimensions with clean surfaces. For high-volume precision component manufacturers, the savings in machining time, tooling wear, and scrap often far outweigh the premium on the tube price. This is why procurement teams in the hydraulic cylinder and automotive industries have standardised on cold drawn tubes even when cost is the primary driver.

Advantage 6: Thinner Walls, Lighter Parts — Without Sacrificing Strength

Because cold drawing raises the yield strength of the steel, design engineers can specify a thinner wall to carry the same working pressure or bending load as a thicker-walled hot rolled tube. This is especially valuable in the automotive, aerospace, and agricultural machinery sectors where weight reduction directly impacts fuel efficiency and payload capacity.

For example, switching from a hot rolled EN 10210 tube (yield strength ~235 MPa for S235) to a cold drawn EN 10305-1 tube in E355 grade (yield strength ≥355 MPa) allows a designer to reduce wall thickness proportionally while maintaining pressure ratings — a meaningful weight and cost reduction in a high-volume application.

Advantage 7: Ready Compliance with Precision Industry Standards

Many industries — particularly hydraulic systems, automotive Tier 1 supply chains, and precision machinery — require steel tubes to be supplied to specific national or international standards that mandate tight tolerances and defined surface quality. The most widely referenced standards for cold drawn steel tubes include:

Hot rolled structural tubes (EN 10210, ASTM A500) are designed for structural load-bearing applications. They do not carry the dimensional and surface quality requirements of the precision standards above, making them unsuitable for most precision fluid power and mechanical engineering uses.

Cold Drawn Seamless vs. Cold Drawn Welded (CDW/DOM): Which to Choose?

Both cold drawn seamless tubes and cold drawn welded tubes offer the seven advantages outlined above compared to hot rolled product. The choice between them comes down to application requirements and budget:

Real-World Applications Where Cold Drawn Steel Tubes Excel

Understanding where cold drawn steel tubes are used helps clarify why their specific advantages matter in practice.

Hydraulic Cylinder Barrels

Hydraulic cylinders require a tube with a smooth, round, straight inner bore so that piston seals can function over long service lives. A cold drawn seamless tube with a honed or skived-and-roller-burnished (SRB) inner surface achieves bore roughness values of Ra ≤ 0.4 µm, which is simply not attainable from a hot rolled starting point without extensive machining.

Automotive Steering Columns and Shock Absorbers

These components require tight outer diameter tolerances so they can be press-fitted, welded, or assembled with close-fitting housings. Cold drawn welded (CDW/DOM) tubes are the standard choice across the global automotive supply chain for these applications due to their outstanding concentricity and consistent OD.

Pneumatic Cylinder Components

Pneumatic systems operate at lower pressures than hydraulic but require equally precise bore dimensions for piston fit. Cold drawn seamless tubes in grades such as E355 (EN 10305-1) or SAE 1020 (ASTM A519) are widely used for pneumatic cylinder barrels.

Agricultural and Heavy Machinery Frames

Cold drawn hollow sections and round tubes are used in machinery frames where consistent wall thickness is required for welding quality and structural reliability.

Precision Mechanical Parts: Shafts, Bushings, and Sleeves

For machined components where bar stock would otherwise be used, cold drawn tubes save material by providing the correct inner diameter near-net, reducing boring time significantly.
