High-Precision Hydraulic Cylinder Tube Manufacturer

Hydraulic Cylinder tube is a kind of precision tube finally used for construction of hydraulic cylinder barrel. The key quality index is internal surface quality, including ID tolerance&ovality, internal surface roughness, etc. Others are determined by design.

Hydraulic Cylinder Tubes

Precision-engineered seamless or welded steel tubes used for cylinder barrels, available honed or skived for ultra-smooth internal finishes.

Honed Steel Tubes

Cold drawn seamless steel tubes honed to tight tolerances (H8/H9) with Ra ≤ 0.25μm, ideal for industrial cylinders and fluid power systems.

Hydraulic Cylinder Steel Pipes

Used in medium to high-pressure applications, available in ST52, E355, SAE 1026, and alloy grades such as 4140 and 25CrMo4.

Hydraulic Cylinder Parts

OEM and custom-machined components including pistons, rods, end caps, seals, and gland nuts, designed to work seamlessly with our tubes.

Technical Specifications

Property: Tube Types, Finishing Options, Sizes Available, Tolerances, Material Grades, Delivery Conditions, Surface Roughness, Stock Options.

Hydraulic Cylinder Tube Material Comparison

Material: Carbon Steel, Stainless Steel, Aluminum.

Applications & Industries Served

Earthmoving Machinery (Excavators, Loaders)
Agricultural Equipment (Tractors, Harvesters)
Presses and Hydraulic Systems
Marine and Offshore Platforms
Material Handling & Lifting Equipment
Cylinder Repair and Rebuild Services

High Precision Hydraulic Cylinder Tube Manufacturing Line

Our Advantages:

• Regular stock of quality raw material from leading mills. Fine melting of raw material ensures the purity of steel, hence surface perfection after ID deep hole boring, honing or skiving&roller burnishing.

• Advanced skiving&roller burnishing machine up to 9 meters. This ensures consistent internal surface, ID tolerance, as well as bore roughness. Automatic blade sawing machine that ensures cut squareness within 0.5mm.

• Automatic blade sawing machine controls the cut squareness within 0.5mm.

• Value added service like OD polishing is available.

• Customized services like OD machining or CNC turning are available.

Parameters of cylinder tubes:

1. Size Range: 33mm(OD)*25mm(ID)-325mm(OD)*280mm(ID), including imperial sizes.

2. Regular steel grades:

DIN 2391-2:	ST52, ST52.3, ST52.4
EN 10305-1:	E355, C45E, E410, E470, 20MnV6, E355K2, E355J2G3, S355JR, 42CrMo4
ASTM A519:	1020, 1026, 1045, 1518, 1524, 4130, 4140
JIS G3445:	STKM13A, STKM 13B, STKM 13C
JIS G3473:	STC370, STC440, STC510A, STC510B, STC540, STC590A, STC590B
GB/T 32957:	45#, Q345B, Q345C, Q345D, Q345E, 27SiMn, 25Mn

3. Mechanical properties of typical steel grades under condition of SRA/BKS:

Steel Grade	Tensile Strength ( Rm )	Yield Strength ( ReH )	Longitudinal Elongation ( A )
1026/ STKM 13C/ STC510A:	≥ 520 Mpa	≥ 380 Mpa	≥ 10%
ST52/ E355:	≥ 580 Mpa	≥ 450 Mpa	≥ 10%
CK45/ 1045/ C45E:	≥ 560 Mpa	≥ 480 Mpa	≥ 8%

4. OD polishing or OD machining: can be negotiated for supply.

Quality Assurance

Method: ISO 9001 & ISO 14001, In-Process Inspection, Pressure Testing, Surface Roughness Checks.

Customization & OEM Services

Custom tube lengths and diameters
Special surface coatings
Machined cylinder parts per drawings
Full material traceability and test reports

Frequently Asked Questions (FAQ)

Q1: What are your standard hydraulic cylinder tube sizes?

A: ID from 40 mm to 580 mm, wall thickness up to 35 mm. Special sizes available on request.

Q2: Do you supply hydraulic cylinder parts as well?

A: Yes, we provide complete cylinder kits including rods, pistons, and machined end caps.

Q3: What is the advantage of honed tubes vs. skived & roller burnished?

A: Honed tubes offer excellent surface smoothness, while skived & roller burnished tubes provide better wear resistance.

Q4: Can I get material certificates and test reports?

A: Yes, all tubes come with EN10204 3.1 certificates and inspection reports.

Q5: Do you maintain inventory for urgent orders?

A: Yes, we keep stock of standard hydraulic cylinder tube sizes for fast dispatch.

Hydraulic Cylinder Tube

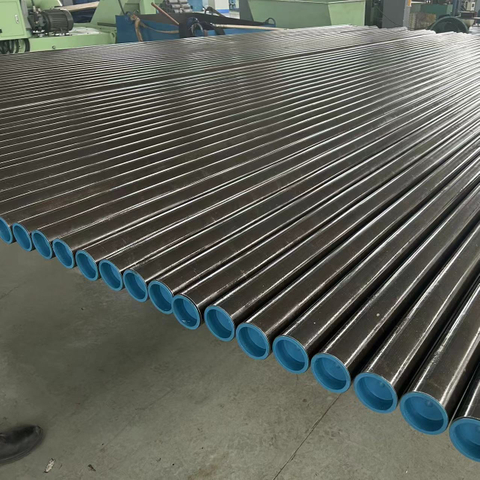

Ck45 C45 1045 S45c Cold Drawn Seamless Honed Steel Tubes for Hydraulic Cylinder

Brief: Premium carbon steel honed tube manufacturer. We supply high-precision, ready-to-assemble seamless steel tubes with superior tensile strength and a flawless mirror-like bore, specifically engineered for heavy-duty hydraulic cylinder barrels.
✅ Core Equivalent Grades: CK45 / SAE 1045 / EN C45E / JIS S45C
✅ Size Range: OD 40mm – 580mm (Wide coverage)
✅ ID Precision: Strict H8 Tolerance
✅ Internal Finish: Honed (Ra ≤ 0.25μm or 0.35μm)
✅ Delivery Condition: +SR / BKS / +C / +N / Q+T available
* Mill Test Certificate provided. Custom skiving & roller burnishing supported.
video

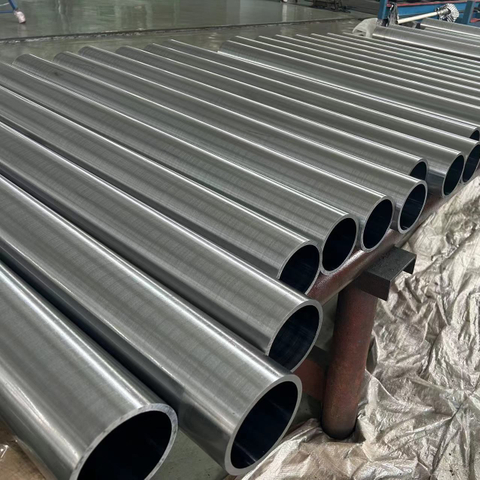

E355 skived&roller burnished tube

Brief: Direct factory supply of high-quality precision skived tubes and advanced skived rolling burnished honed tubes. Engineered for premium hydraulic cylinders requiring ultra-smooth internal finishes and enhanced surface hardness.

✅ Core Material: EN E355 / DIN ST52 / SAE 1026
✅ Inner Roughness: Ra ≤ 0.25μm (Superior to a standard burnished honed tube)
✅ ID Tolerance: Precision H8 (H7/H9/H10 available)
✅ Size Range: OD 33mm – 325mm
✅ Advantage: Higher internal surface hardness & longer seal life
* Custom OD machining and CNC turning supported. Request a factory quote today.
MOQ: 500 Kgs/Size
SAE AISI 1045 C45 Cold Drawn Seamless Carbon Steel Honed Tubing for Hydraulic Cylinder

Brief: As a direct c45 1045 steel pipe factory, we supply premium cold drawn seamless honed steel tubes ready for immediate hydraulic cylinder assembly. Engineered for high-pressure fluid power systems, our tubes guarantee ultimate durability and leak-free performance.

✅ Core Material: SAE 1045 / EN C45E / GB 45#
✅ Size Range: OD 40mm – 325mm
✅ ID Precision: Strict H8 Tolerance
✅ Inner Roughness: Mirror-like Honed (Ra ≤ 0.25 μm)
✅ Business Type: Factory direct seamless steel honed tube wholesale
* Custom CNC turning and machining available upon request.
video

E355 Pre honed tube with OD polished

Brief: Specification: EN 10305-1
Grade: E355
MOQ: 100 Kgs/size
St52 Seamless Steel Honed Tube for Hydraulic Cylinder Barrel

Brief: As a leading seamless honed tube manufacturer, we supply high-strength ST52 honed cylinder tubes engineered for heavy-duty hydraulic barrels. Manufactured from premium ST52 seamless pipe, it ensures ultimate pressure resistance and zero fluid leakage.

Material: ST52 / ST52.3 / ST52.4 (DIN 2391 / EN 10305-1)

Size Range: ID 30mm–500mm | OD 40mm–580mm

Precision: Strict H8 ID Tolerance

Surface Roughness: Ra ≤ 0.25 μm (Honed) or ≤ 0.35 μm (SRB)

Customization: Every ST52 tube can be cut and CNC machined to your drawings.
C45e Seamless Honed Steel Tube for Hydraulic Cylinder Barrel

Brief: Honed hydraulic cylinder tube is a kind of smooth bore steel tube used to manufacture hydraulic cylinder barrels that is the core part of a piece of hydraulic cylinder.
E355 Honed tube with OD polished

Brief: Specification: EN 10305-1
Size: 33mm*25mm-325mm*300mm
ID tolerance: H8
Seamless Honed Steel Tube for Hydraulic Cylinder

Brief: Seamless honed steel tube is a kind of smooth bore steel tube used to manufacture hydraulic cylinder barrels that is the core part of a piece of hydraulic cylinder.
1026 Seamless Honed Steel Tube

Brief: Honed steel tube is a kind of smooth bore steel tube used to manufacture hydraulic cylinder barrels that is the core part of a piece of hydraulic cylinder.
