E355 Hollow Piston Rod
A piston rod is a crucial structural component in hydraulic and pneumatic cylinders, acting as the connecting link between the piston and the external mechanism it powers. Piston rods are typically divided into solid and hollow types.

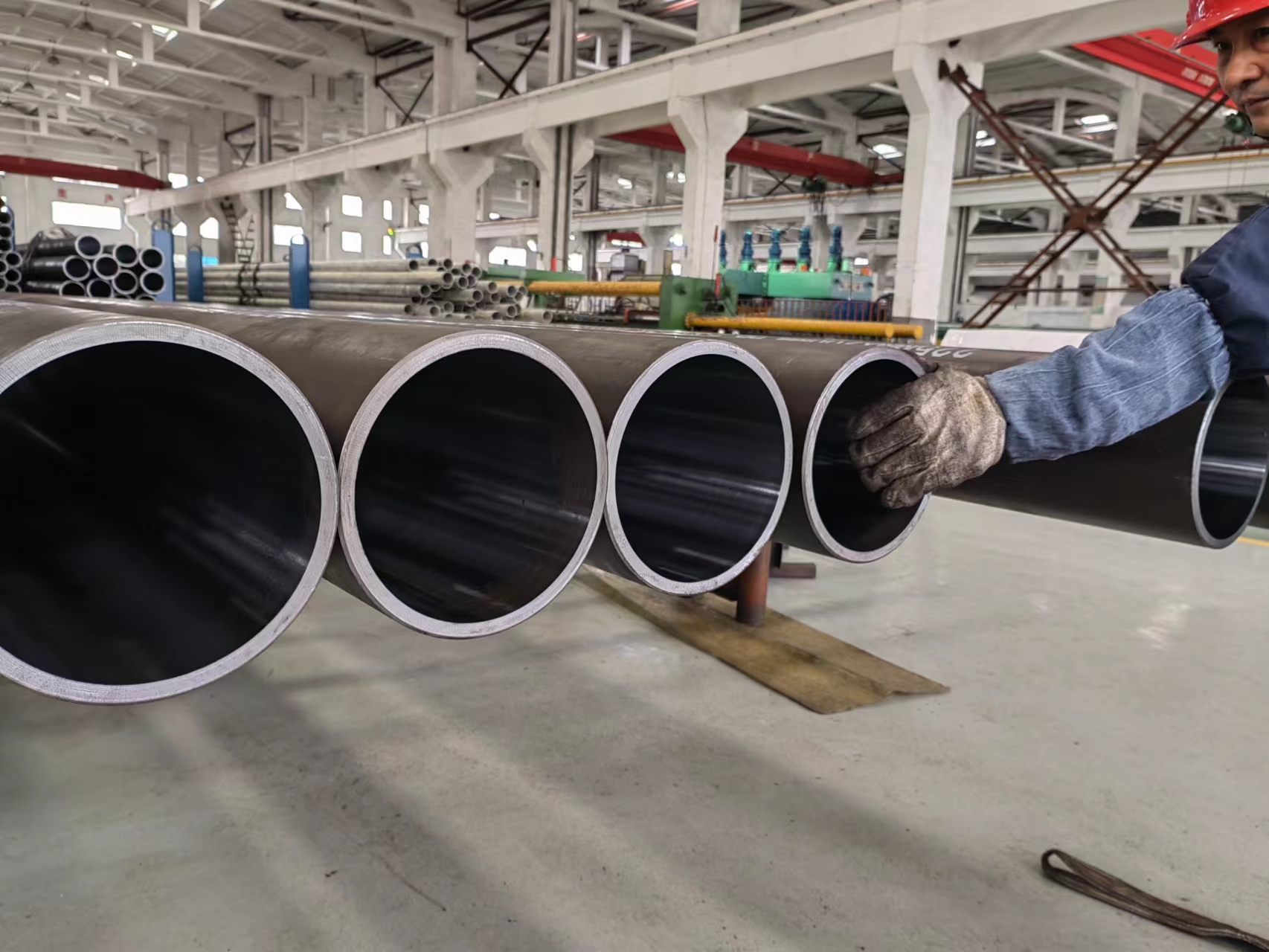

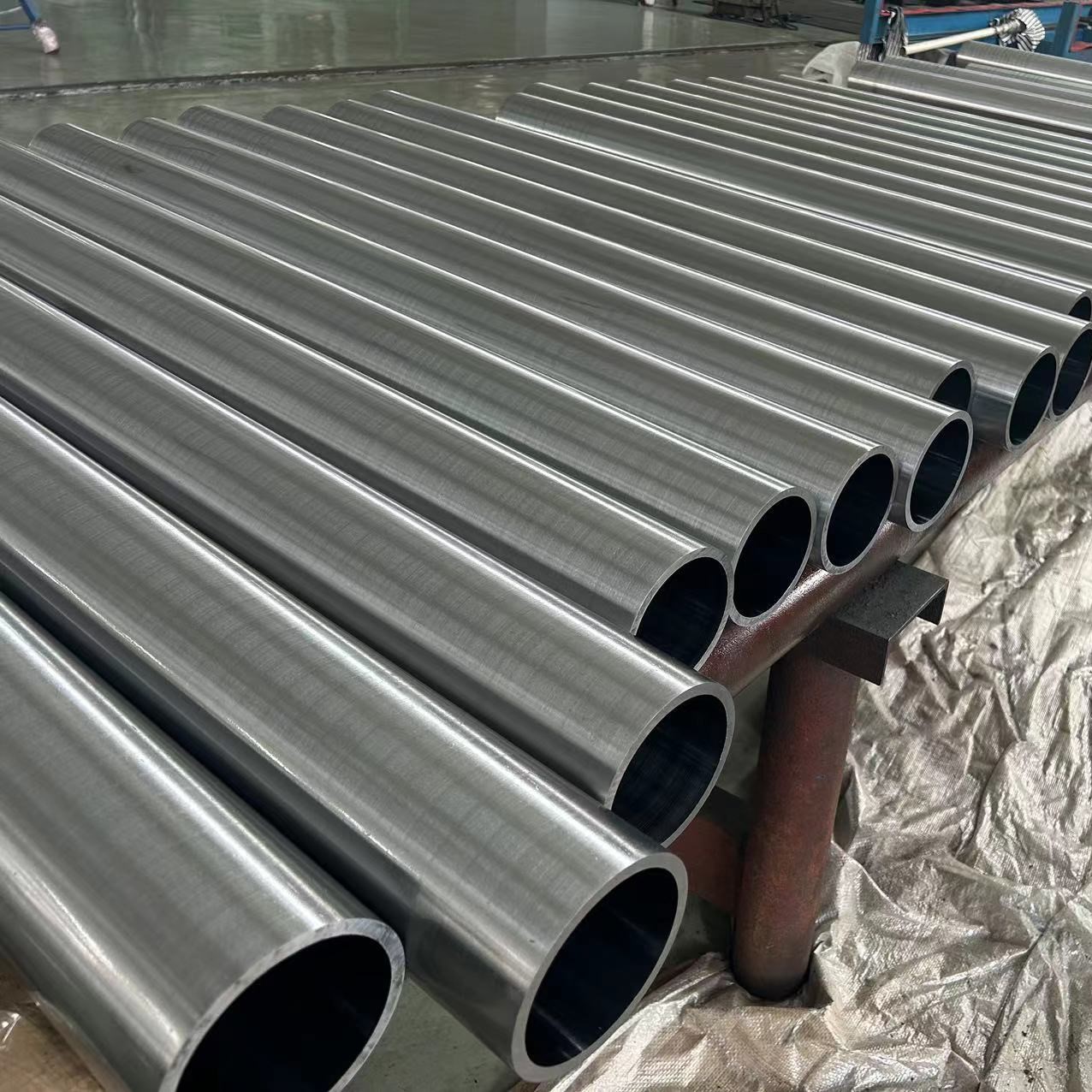

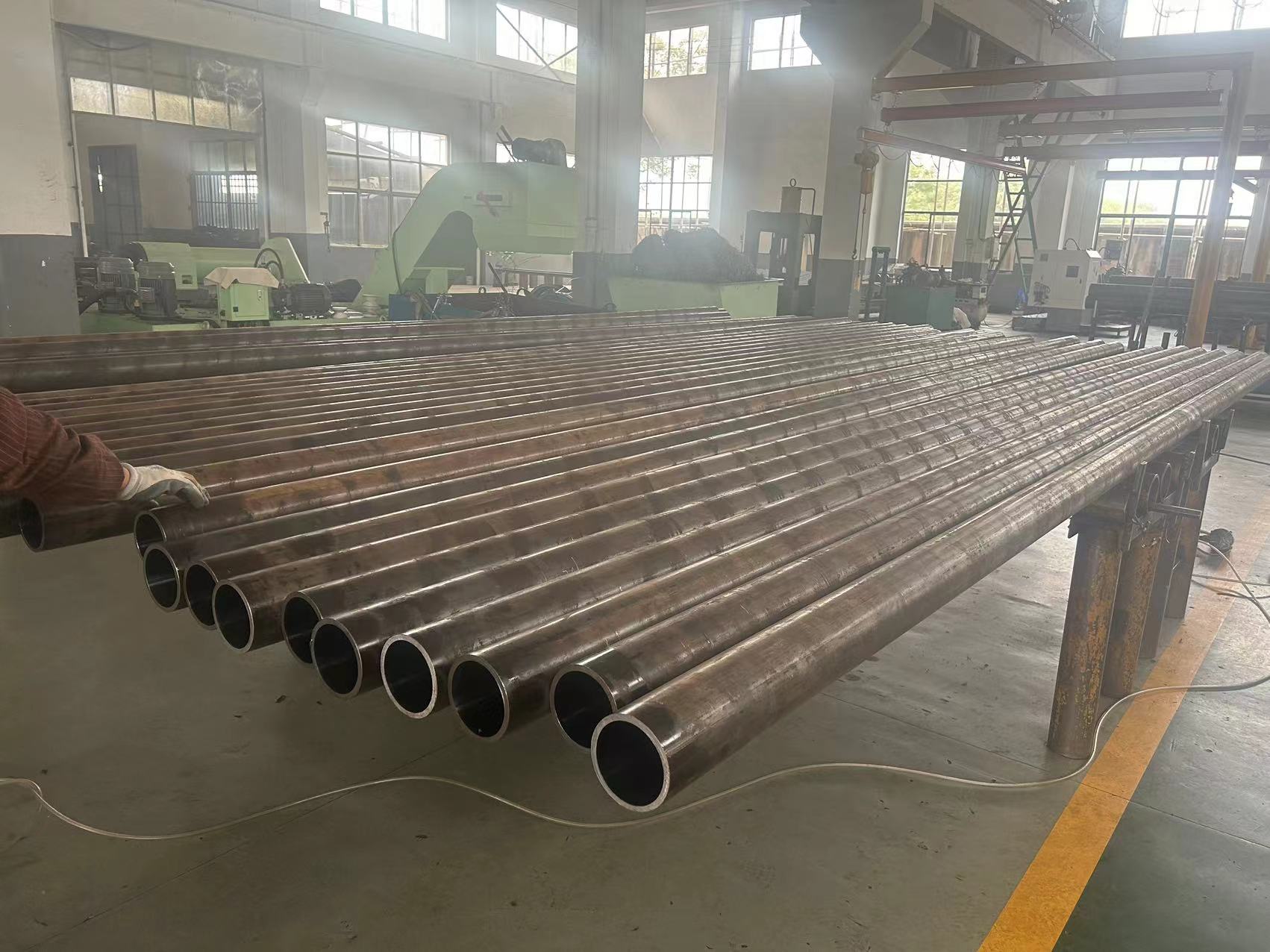

While solid piston rods are machined from hard chrome plated steel bars, hollow piston rods—like the E355 variant—are fabricated from high-precision seamless tubes. These hollow rods offer benefits such as reduced weight, material savings, and compatibility with telescopic cylinders.
Model: CX-10
Brand: CHENGXIN
HS Code: 841290
Quantity: 1
Relevant Keywords: chrome plated piston rod, chrome plated rod, chrome rod suppliers, chrome plated rod manufacturers, hollow piston rod cylinder, E355 hollow piston rod
Product Description
Commodity: E355 Hollow Piston Rod
Size Range: 50mm × 40mm – 325mm × 280mm
Available Steel Grades:
AISI / SAE: 1026, 1045, 1518, 1524, 4141
DIN: ST52, ST52.3, ST52.4
EN: C45E, E355, E470, 20MnV6
JIS: STKM 13C, S45C
Manufacturing Method: Peeling → Grinding → Hard Chrome Plating → Polishing
Delivery Condition Options: +SR (Stress Relieved), +A (Annealed), +N (Normalized), Q+T (Quenched and Tempered)
Chromed Layer Specifications: Thickness 20–50 μm, Hardness HV 800 min, Surface Roughness Ra ≤ 0.25 μm (polished chrome finish)

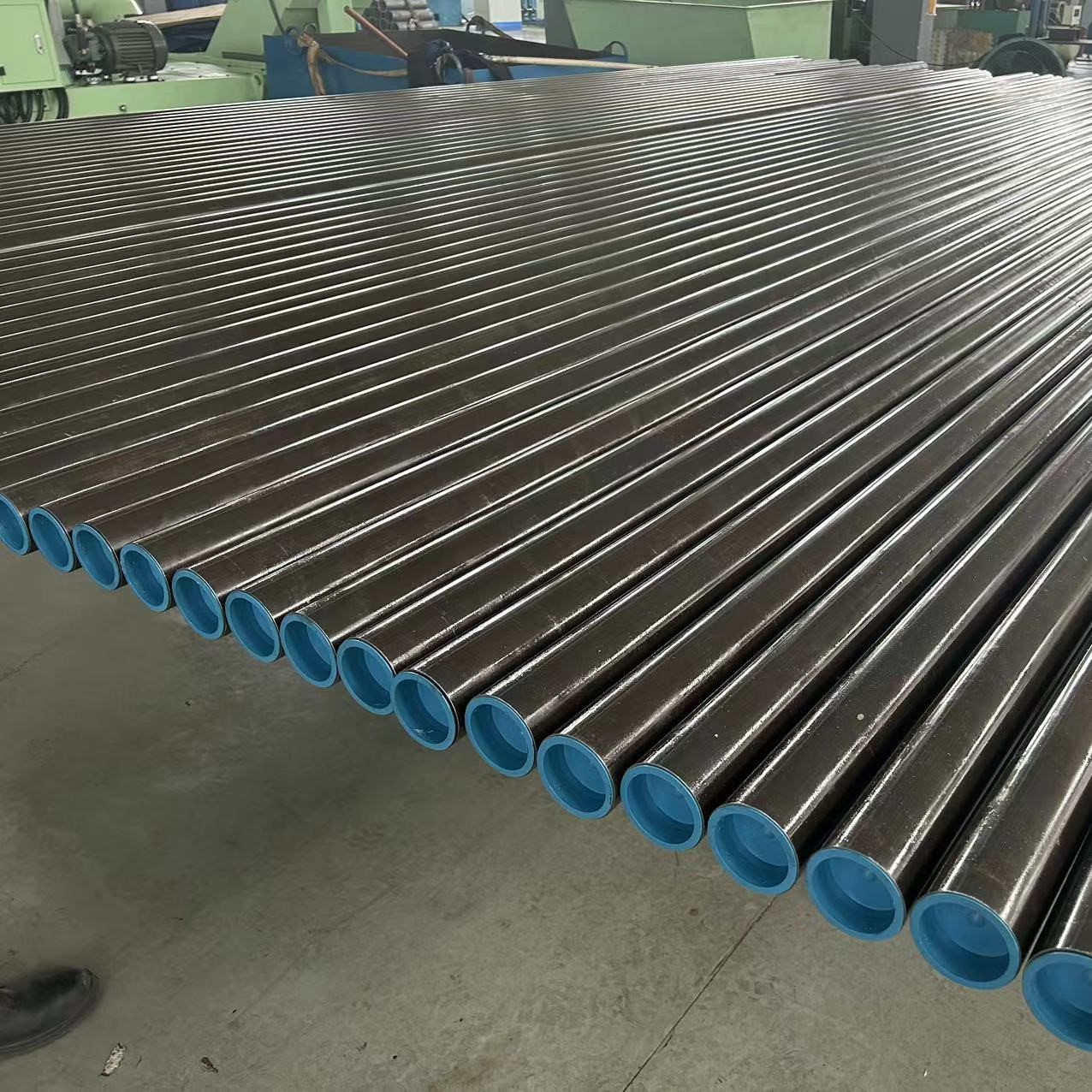

End Finish: Plain ends or CNC-machined as per drawing; deburred and protected with plastic caps
Applications
Hollow piston rods made from E355 material are ideal for telescopic hydraulic cylinders, where weight reduction and extended stroke capability are essential. Common applications include agricultural and construction equipment, industrial machinery, lifting and material handling systems, and mobile hydraulic cylinders. The hollow structure optimizes fluid space in multi-stage cylinders while maintaining excellent compressive strength.
Quality Assurance
Raw Materials: Sourced from certified steel mills

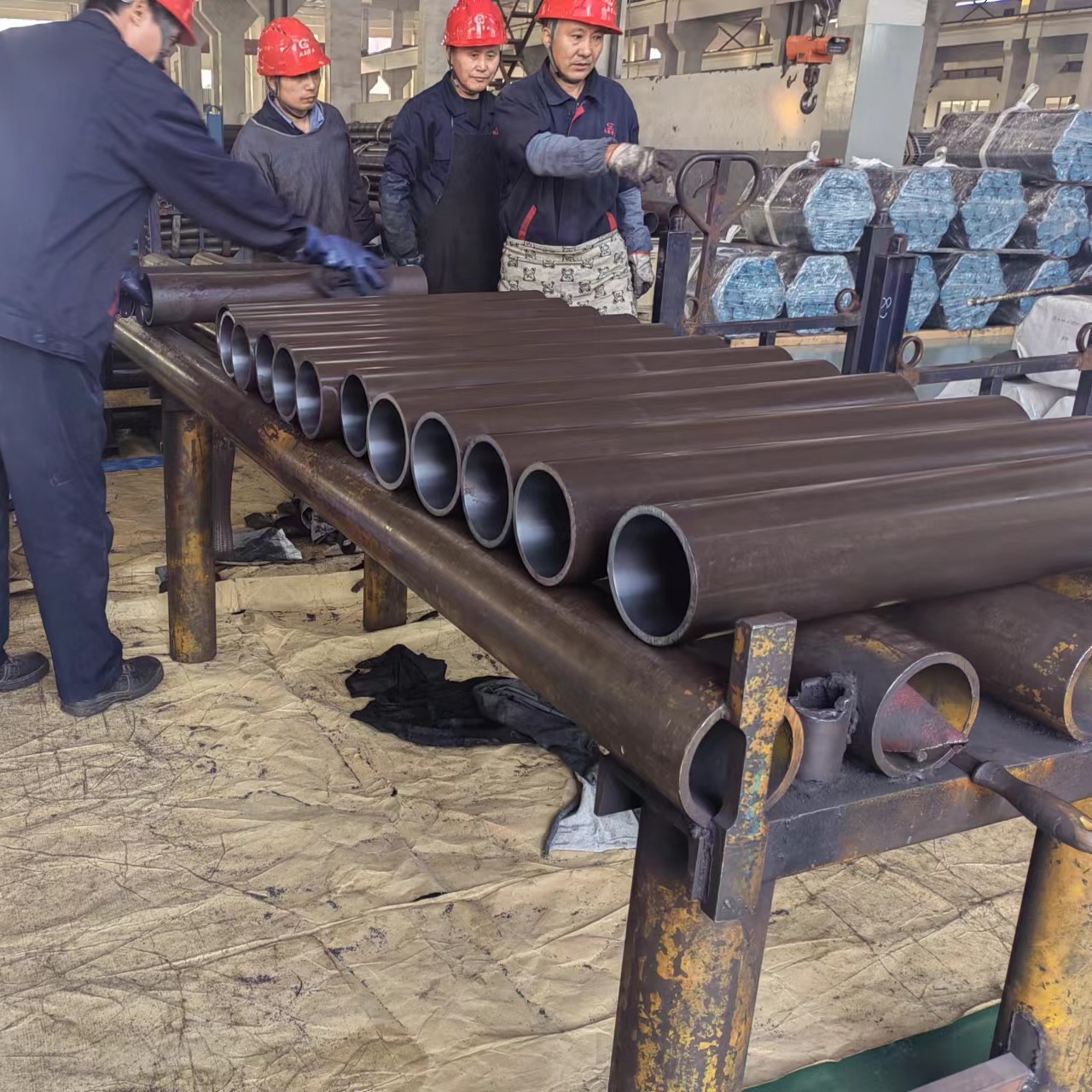

Inspection: Visual, dimensional, and hardness testing
Coating Verification: Thickness, hardness, and surface integrity checks
Packaging & Logistics
Standard Export Packing: Bundled with steel strips, internal & external rust-prevention oil, ends capped, PVC or woven bag covering
Custom Options: Packaging and logo marking available on request
FAQ
Q1: Are you a chrome plated piston rod manufacturer?
A: Yes. We manufacture and supply both solid and hollow chrome plated rods for hydraulic applications.
Q2: What’s the advantage of hollow piston rods in telescopic cylinders?
A: They reduce system weight and increase fluid space, ideal for long-stroke, multi-stage cylinders.
Q3: Can you supply customized dimensions or grades?
A: Absolutely. We offer full customization of length, diameter, steel grade, and plating thickness.
Q4: What is the minimum order quantity (MOQ)?
A: Typically 2–3 tons per size; higher for special grades like E470 or 20MnV6.
Q5: What surface treatment options are available?
A: Hard chrome plating with precision grinding and polishing for superior wear resistance and finish.
Upgrade your hydraulic system performance with our precision-engineered E355 chrome plated hollow piston rods. Contact us today to discuss your technical requirements and request a quote.
