Views: 0 Author: Site Editor Publish Time: 2026-02-25 Origin: Site
Engineers and procurement specialists working with hydraulic systems face critical decisions when selecting cylinder tubes. Understanding honed tube standard sizes and how they align with international specifications determines system performance, cost-efficiency, and long-term reliability. This comprehensive analysis examines dimensional standards, tolerance systems, and practical selection criteria for honed tubes across global manufacturing standards.
Honed tube standard sizes range from 33mm×25mm to 325mm×300mm outer diameter by inner diameter configurations under EN 10305-1
Tolerance grades H7, H8, H9, and H10 define inner diameter precision, with H8 being the most commonly specified for hydraulic cylinders
Wall thickness typically ranges from 2.5mm to 25mm depending on pressure requirements and application demands
Surface roughness for honed tubes achieves Ra 0.20-0.35μm, critical for seal longevity and leak prevention
Standard lengths of 6 meters accommodate most applications while minimizing material waste during fabrication

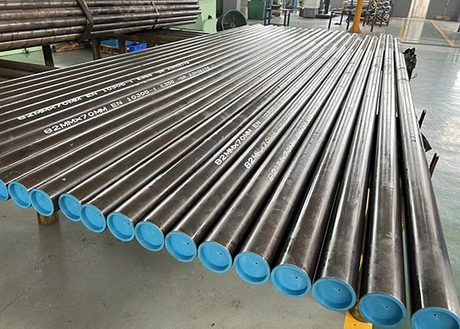

Honed tubes represent precision-engineered steel tubes with interior surfaces machined to exact dimensional tolerances and surface finish specifications. The manufacturing process begins with cold-drawn seamless or welded tubes, followed by honing operations that remove material using abrasive stones. This process creates the mirror-smooth bore surface essential for hydraulic cylinder performance.
Multiple international standards govern honed tube production, with EN 10305-1 being the predominant European specification for seamless cold-drawn precision tubes. This standard establishes comprehensive requirements for dimensions, tolerances, mechanical properties, and testing procedures. North American manufacturers often reference ASTM A519, while Asian markets follow JIS G3441 and similar national standards.
The tube industry has standardized certain size combinations based on decades of hydraulic system design evolution. These honed tube standard sizes align with piston rod diameters, mounting dimensions, and available tooling throughout the manufacturing supply chain.
| Size Category | OD Range (mm) | ID Range (mm) | Typical Applications |
|---|---|---|---|
| Small Bore | 33-63mm | 25-50mm | Compact hydraulics, automotive systems, light machinery |
| Medium Bore | 70-140mm | 60-125mm | Industrial machinery, mobile equipment, standard cylinders |
| Large Bore | 150-250mm | 130-220mm | Heavy construction equipment, marine systems, large presses |
| Extra Large Bore | 260-325mm | 230-300mm | Mining equipment, ship steering, dam gates, specialized machinery |
Inner diameter tolerance classification follows ISO tolerance designation, with H-grade tolerances being shaft-basis fits. The number following H indicates precision level, with lower numbers representing tighter tolerances. Understanding these grades proves essential when specifying honed tube standard sizes for specific applications.
| ID Range | H7 Tolerance | H8 Tolerance | H9 Tolerance |
|---|---|---|---|
| 18-30mm | +0/+0.021mm | +0/+0.033mm | +0/+0.052mm |
| 30-50mm | +0/+0.025mm | +0/+0.039mm | +0/+0.062mm |
| 50-80mm | +0/+0.030mm | +0/+0.046mm | +0/+0.074mm |
| 80-120mm | +0/+0.035mm | +0/+0.054mm | +0/+0.087mm |
| 120-180mm | +0/+0.040mm | +0/+0.063mm | +0/+0.100mm |
| 180-250mm | +0/+0.046mm | +0/+0.072mm | +0/+0.115mm |
H8 tolerance represents the optimal balance between manufacturing cost and functional performance for most hydraulic applications. Tighter H7 tolerance becomes necessary for high-precision applications requiring minimal seal clearance, while H9 suffices for lower-pressure systems or applications with less demanding sealing requirements.
Wall thickness selection for honed tubes depends primarily on operating pressure, with secondary considerations including mounting method, stroke length, and safety factor requirements. Engineers calculate required wall thickness using burst pressure formulas that account for material tensile strength and application safety factors.
Standard wall thicknesses follow a graduated progression that balances material utilization against structural requirements. For a 100mm outer diameter tube operating at 200 bar (20 MPa), typical wall thickness ranges from 7-10mm depending on steel grade and safety requirements. Material specifications like E355 or ST52 provide yield strengths around 355 MPa, enabling engineers to calculate precise wall thickness requirements.
The relationship between pressure rating and wall thickness follows established engineering principles documented in standards like ISO 6020-1, which specifies mounting dimensions for single rod cylinders in the 16 MPa pressure series. These standards ensure interchangeability between manufacturers while maintaining safety margins appropriate for hydraulic applications.
Surface roughness directly impacts seal performance and cylinder lifespan. Industry standards specify maximum roughness values of Ra 0.20μm to Ra 0.35μm for honed tube applications, with tighter specifications required for high-cycle applications or systems using soft seal materials.
The honing process creates a characteristic crosshatch pattern on the bore surface, with angle and depth specifications affecting oil retention and seal behavior. Typical crosshatch angles range from 25-45 degrees, optimizing the balance between sealing effectiveness and lubrication retention. This surface geometry proves superior to alternative finishing methods like skiving and roller burnishing for applications requiring optimal seal life.
Quality manufacturers implement 100% inspection protocols using profilometers and bore gauges to verify both surface roughness and dimensional accuracy. This verification ensures every tube meets specified tolerances before shipment, preventing costly field failures and system downtime.
Material selection significantly influences both performance and cost when specifying honed tube standard sizes. Common steel grades include E355 (DIN designation ST52), C45E (DIN CK45), and various AISI/SAE grades like 1026 and 1045. Each offers distinct mechanical properties suited to different applications.
| Steel Grade | Yield Strength | Typical Applications | Cost Relative |
|---|---|---|---|
| E235 (ST37) | 235 MPa | Low-pressure systems, general purpose | Baseline |
| E355 (ST52) | 355 MPa | Standard hydraulic cylinders, mobile equipment | +15% |
| AISI 1026 | 415 MPa | North American market standard | +10% |
| C45E (CK45) | 430 MPa | High-strength applications, demanding service | +25% |
| 42CrMo4 | 650 MPa | Extreme pressure, specialized applications | +60% |
Heat treatment conditions affect final properties significantly. Normalized (+N) condition provides consistent mechanical properties throughout the tube wall, while stress-relieved (+SR) condition minimizes residual stresses from cold working. Application requirements dictate appropriate heat treatment selection.
Certain honed tube standard sizes appear frequently across industries due to standardized cylinder designs and mounting configurations. Understanding these common sizes assists engineers in selecting readily available options that minimize lead times and costs.
Small bore configurations like 63×50mm, 70×60mm, and 80×70mm dominate automotive and compact equipment applications. Medium bore sizes including 100×90mm, 125×110mm, and 140×120mm serve general industrial machinery. Large bore configurations such as 180×160mm, 200×180mm, and 250×220mm find application in construction equipment and heavy machinery.
Manufacturers typically maintain inventory in these popular sizes, enabling shorter delivery schedules compared to non-standard dimensions. Custom sizes remain available but often require minimum order quantities and extended lead times due to tooling setup requirements.
Standard production lengths for honed tubes typically range from 5 to 6.5 meters, with 6 meters being most common under EN 10305-1. This length accommodates efficient material handling, minimizes waste during cutting operations, and aligns with transportation capabilities.
Straightness tolerances become increasingly important for longer tubes, with standards specifying maximum deviation of 0.0007×L where L represents tube length. For a 6-meter tube, this translates to maximum bow of 4.2mm measured as the maximum distance from tube centerline to a taut string. More stringent straightness requirements increase manufacturing costs but prove necessary for long-stroke cylinders.
End finishing typically includes square cutting with deburring to prevent seal damage during assembly. Some applications specify chamfering or specific end treatments, which should be clearly communicated during procurement to ensure proper functionality.
Comprehensive testing ensures honed tube quality meets specifications. Standard inspection includes dimensional verification using bore gauges or coordinate measuring machines, surface roughness measurement via profilometer, and mechanical property confirmation through tensile testing.
Non-destructive testing methods detect internal defects invisible to surface inspection. Ultrasonic testing identifies laminations, inclusions, and other discontinuities within tube walls. Eddy current testing verifies surface integrity and detects cracks or seams. Quality manufacturers implement these testing protocols as standard practice, documented through mill test certificates compliant with EN 10204 3.1 specifications.
Hydraulic pressure testing validates structural integrity under simulated service conditions. Test pressures typically reach 1.5 times rated working pressure, confirming adequate safety margins. This testing prevents field failures that could result in expensive downtime or safety hazards.
Selecting appropriate honed tube standard sizes requires systematic evaluation of multiple factors. Force requirements dictate bore size, with larger diameters generating proportionally greater thrust. Operating pressure influences wall thickness selection, balanced against weight and cost considerations.
Stroke length affects straightness requirements and may influence size selection to ensure adequate buckling resistance. Mounting style compatibility requires matching tube dimensions to standard mounting hardware and cylinder end configurations. Environmental conditions including temperature extremes, corrosive environments, or shock loading may necessitate material grade upgrades.
Cost optimization involves balancing standard versus custom sizes. Standard sizes typically cost 15-30% less than custom configurations due to inventory availability and reduced setup requirements. However, applications with specific space constraints or performance requirements may justify custom dimensions despite premium pricing.

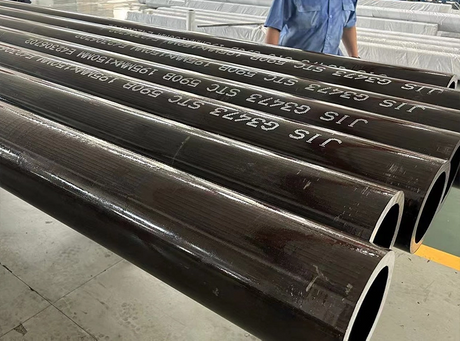

While EN 10305 standards dominate European markets, understanding equivalent specifications in other regions facilitates global sourcing. ASTM A519 governs seamless mechanical tubing in North America, with similar dimensional and mechanical property requirements. Japanese JIS G3441 and Chinese GB/T 3639 specifications serve Asian markets with largely compatible requirements.
Steel grade designations vary between regions but often specify equivalent chemical compositions and mechanical properties. E355 under EN standards roughly corresponds to ST52 (DIN), STKM 13C (JIS), and grades within the AISI 1026-1045 range. Engineers should verify specific requirements rather than assuming complete equivalency.
For international procurement, specifying both dimensional requirements and reference standards prevents confusion. Clear documentation of tolerance grades, surface finish requirements, and testing protocols ensures consistent quality regardless of supplier location.
Understanding cost drivers helps optimize procurement decisions for honed tubes. Raw material represents 40-50% of finished tube cost, with honing operations adding 15-25% depending on tolerance requirements and surface finish specifications. Tighter tolerances increase machining time and tool wear, translating to higher pricing.
Order quantity significantly impacts unit pricing. Manufacturers typically offer price breaks at 500kg, 1000kg, and 5000kg order levels. Standard sizes from inventory cost less than custom production runs requiring setup changes. Lead times vary from 2-3 weeks for standard sizes to 6-10 weeks for custom dimensions or exotic materials.
Transportation costs affect total delivered price, particularly for large-diameter tubes. Efficient packaging maximizes container utilization while preventing damage during shipment. Working with experienced suppliers who understand these logistics factors ensures competitive total cost of ownership.
Manufacturing technology continues advancing, improving both capability and efficiency. Automated honing systems with closed-loop dimensional control achieve tighter tolerances with improved consistency. Advanced surface analysis technologies enable real-time verification of crosshatch patterns and roughness parameters.
Material science developments introduce higher-strength steel grades that enable thinner walls for equivalent pressure ratings, reducing weight and material costs. Improved heat treatment processes enhance dimensional stability and mechanical properties. These advances benefit users through better performance and potentially lower costs.
Digital supply chain integration streamlines procurement processes. Online configuration tools allow engineers to specify exact requirements and receive instant quotations. Real-time inventory visibility reduces lead times for standard sizes. These improvements enhance the customer experience while maintaining quality standards.
Selecting qualified suppliers proves as important as choosing correct specifications. Experienced manufacturers maintain rigorous quality systems, proper testing equipment, and technical expertise to support complex applications. Companies like CHENGXIN, with decades of precision tube manufacturing experience, provide the technical support and consistent quality that demanding hydraulic applications require.
Established manufacturers invest in advanced production equipment including multiple honing machines, comprehensive testing facilities, and quality management systems certified to international standards. This infrastructure ensures capability to meet tight tolerances repeatedly while maintaining competitive pricing through operational efficiency.
Understanding honed tube standard sizes requires knowledge spanning dimensional standards, tolerance systems, material specifications, and manufacturing capabilities. Engineers who master these fundamentals make informed decisions that optimize system performance while controlling costs. Standard size selections typically offer the best combination of availability, cost, and performance for most applications, with custom dimensions justified when specific requirements demand tailored solutions. Partnering with experienced manufacturers ensures access to technical expertise, consistent quality, and reliable supply chains essential for successful hydraulic system implementation.
Q1: What is the most common honed tube tolerance grade?
H8 tolerance represents the industry standard for most hydraulic cylinder applications, balancing manufacturing cost against functional requirements. This tolerance provides adequate precision for reliable seal performance without the premium cost of tighter H7 specifications.
Q2: How do I calculate required wall thickness for my application?
Wall thickness calculation uses the formula: t = (P × D) / (2 × σ × η), where P is pressure, D is inner diameter, σ is material allowable stress, and η is weld efficiency. Consult standards like ISO 6020-1 or work with experienced suppliers for verification.
Q3: Can honed tubes be used for pneumatic applications?
Yes, honed tubes work excellently for pneumatic cylinders. The lower pressures in pneumatic systems allow thinner walls compared to hydraulics, though the same surface finish requirements apply for optimal seal performance and longevity.
Q4: What is the difference between honed and skived-and-roller-burnished tubes?
Both achieve similar surface quality, but honing removes material while skiving and roller burnishing displaces material through plastic deformation. Honing offers superior dimensional control and is preferred for demanding applications requiring tight tolerances.
Q5: How does tube straightness affect cylinder performance?
Excessive bow causes uneven seal wear, increased friction, and potential binding in long-stroke applications. Standard straightness of 0.0007×L suffices for most applications, while precision cylinders may require 0.0005×L or better.
Q6: Are standard sizes immediately available from stock?
Most manufacturers maintain inventory of common honed tube standard sizes in popular materials like E355 and ST52. Availability varies by supplier, but standard sizes typically ship within 2-3 weeks versus 6-10 weeks for custom dimensions.
Q7: What surface roughness specification should I request?
Ra 0.25-0.35μm suits most standard hydraulic applications. High-cycle or high-speed cylinders benefit from Ra 0.20μm or better. Rougher finishes reduce cost slightly but may compromise seal life in demanding service.
