Cold Drawn Steel Tubes: Features and Applications

Cold Drawn Steel Tubes: Features and Applications

Cold drawn steel tubes are widely regarded as some of the most precise and reliable products in the steel tubing industry. Their unique manufacturing process enhances both the mechanical properties and dimensional accuracy of the final product, making cold drawn steel tubes an essential component in various industries, particularly in hydraulic systems. At Changzhou Chengxin Metal Products Co., Ltd., we specialize in producing high-quality cold drawn steel tubes, with a focus on delivering products that meet the stringent requirements of modern industrial applications.

Features of Cold Drawn Steel Tubes

1.High Dimensional Accuracy

One of the most notable features of cold drawn steel tubes is their exceptional dimensional accuracy. The cold drawing process reduces the outer diameter and wall thickness of the tube while maintaining tight tolerances, making these tubes ideal for applications where precise measurements are crucial. At Changzhou Chengxin, we manufacture cold drawn tubes with outer diameters ranging from 50mm to 325mm, with strict adherence to customer-specified tolerances.

2.Smooth Surface Finish

Cold drawn tubes are characterized by their smooth surface finish, both internally and externally. This is especially important for hydraulic cylinder tubes, where the smoothness of the inner surface directly impacts the efficiency and lifespan of the hydraulic system. Our tubes undergo honing, skiving, and roller burnishing processes to achieve a superior finish that minimizes friction, reduces wear, and enhances the flow of hydraulic fluid through the system.

3.Improved Mechanical Properties

The cold drawing process also results in tubes with enhanced mechanical properties, including increased strength and hardness. During the drawing process, the steel undergoes significant plastic deformation, which refines the grain structure and improves the tube’s overall strength. The addition of heat treatment, such as annealing, further optimizes the material’s toughness and ductility, ensuring that the tubes can withstand the high-pressure environments typical of hydraulic systems.

4.Material Flexibility

At Changzhou Chengxin, we offer cold drawn tubes in a variety of steel grades, including carbon steel, carbon-manganese steel, and chrome-molybdenum steel. This material flexibility allows us to cater to a wide range of applications, from hydraulic systems and automotive components to machinery and heavy equipment. The choice of material is based on the specific application and performance requirements, such as corrosion resistance, load-bearing capacity, and temperature tolerance.

5.Enhanced Corrosion Resistance

Cold drawn steel tubes, particularly those made from chrome-molybdenum steel, offer enhanced resistance to corrosion, making them suitable for use in harsh environments. For applications where exposure to moisture, chemicals, or extreme temperatures is common, these tubes provide a longer lifespan and improved performance, reducing maintenance costs and downtime for end-users.

Applications of Cold Drawn Steel Tubes

Cold drawn steel tubes have a wide range of applications across different industries due to their superior strength, precision, and surface finish. Below are some of the key areas where these tubes play a critical role:

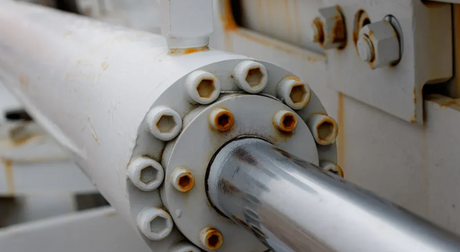

1.Hydraulic Cylinders

One of the primary applications of cold drawn steel tubes is in the manufacturing of hydraulic cylinders. These cylinders are used to convert hydraulic fluid power into mechanical force, enabling the operation of heavy machinery and equipment in industries such as construction, agriculture, and manufacturing. The smooth internal surface of the cold drawn tubes ensures that the hydraulic fluid flows efficiently, reducing wear and tear on the seals and improving the overall performance of the hydraulic system.

2.Automotive Components

In the automotive industry, cold drawn steel tubes are used in the production of various components such as shock absorbers, drive shafts, and steering columns. The high precision and strength of these tubes make them ideal for parts that are subjected to high stresses and require tight tolerances to function effectively. Additionally, the enhanced corrosion resistance of cold drawn tubes ensures that automotive components can withstand exposure to moisture, road salt, and other corrosive elements.

3.Machinery and Equipment

Cold drawn steel tubes are also widely used in the manufacturing of industrial machinery and equipment. Their strength and dimensional stability make them suitable for applications such as machine tools, presses, rollers, and conveyors, where they are subjected to high loads and require long-term durability. In particular, the ability of cold drawn tubes to maintain their shape and mechanical properties under high-pressure conditions makes them a preferred choice for manufacturers of heavy-duty machinery.

4.Aerospace and Aviation

The aerospace and aviation industries rely on materials with high strength-to-weight ratios and exceptional precision. Cold drawn steel tubes meet these requirements, offering a combination of strength, lightweight properties, and corrosion resistance. They are used in the production of landing gear, hydraulic systems, and structural components for aircraft, where safety and reliability are of paramount importance.

5.Oil and Gas Industry

In the oil and gas industry, cold drawn steel tubes are used for downhole drilling tools, production tubing, and casing applications. These tubes must be able to withstand extreme pressures, corrosive environments, and high temperatures. Cold drawn steel tubes, particularly those made from chrome-molybdenum steel, provide the necessary strength and corrosion resistance for these demanding applications, ensuring long-term reliability in oil and gas extraction operations.

6.Construction and Structural Applications

Cold drawn steel tubes are used in the construction industry for structural supports, scaffolding, and frameworks. Their high strength and stiffness make them ideal for load-bearing applications, while their corrosion resistance ensures longevity in outdoor environments. In particular, cold drawn tubes are often used in the construction of bridges, high-rise buildings, and infrastructure projects, where precision and strength are critical.

Why Choose Cold Drawn Tubes from Changzhou Chengxin Metal Products Co., Ltd.?

At Changzhou Chengxin Metal Products Co., Ltd., we are committed to producing cold drawn steel tubes that meet the highest industry standards. With over two decades of experience in tube manufacturing, we understand the specific requirements of different industries and applications. Our state-of-the-art manufacturing facility, equipped with advanced hydraulic cold drawing benches, allows us to produce tubes with exceptional precision and quality.

We pride ourselves on offering customized solutions for our clients, including custom steel grades, specific surface finishes, and tailored tube dimensions. Our dedicated team of engineers and technicians work closely with customers to ensure that each product meets their unique requirements.

Additionally, our commitment to quality control ensures that every cold drawn tube undergoes rigorous testing and inspection before leaving our facility. From dimensional accuracy to surface finish and mechanical properties, we ensure that every tube is manufactured to the highest standards.
