CK45 Hard Chrome Plated Rod | Chrome Hollow Rod Manufacturer from China
Model: CX-10
Brand: CHENGXIN
HS Code: 841290
MOQ: 1 Ton
Keywords: ck45 chrome hollow bar, ck45 hard chrome hollow rod, chrome plated rod, hollow cylinder rod factory, hard chrome rod manufacturer, ck45 chromed rod
Product Overview

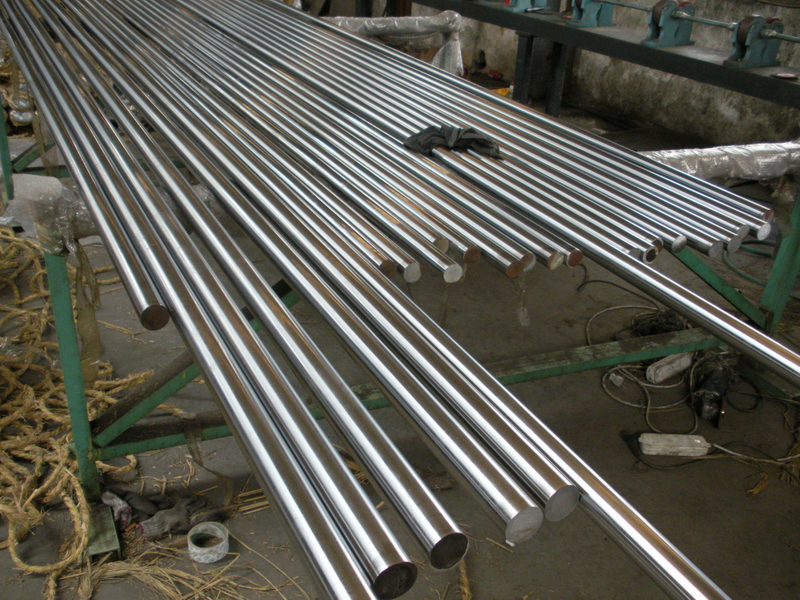

CK45 Hard Chrome Plated Rods are high-performance piston rods widely used in hydraulic cylinders, telescopic cylinders, machinery shafts, and linear motion systems. With high surface hardness, strong corrosion resistance, and superior straightness, these rods can be manufactured as solid piston rods or chrome hollow rods, depending on your design requirements. Our CK45 hard chrome hollow rod is produced using high-quality seamless mechanical tubing and undergoes strict grinding, hard chrome plating, and polishing processes to meet tight tolerances and demanding industrial standards.
Technical Specifications
Product: CK45 Hard Chrome Plated Rod / Hollow Cylinder Rod
Material Grade Options:
AISI/SAE: 1020, 1026, 1045, 1518, 1524, 4140
EN: E355, E470, C45E, 20MnV6
DIN: ST52, ST52.3, ST52.4
JIS: S45C, CK45, STKM 13C
Size Range: Outer Diameter: 8mm – 250mm; Wall Thickness: Customizable (for hollow rod design); Length: Up to 8000mm or as per customer request
Surface Finish: Hard Chrome Plating Thickness: 20μm – 50μm (customized); Hardness of Chrome Layer: ≥ HV800; Surface Roughness: Ra ≤ 0.2 μm
Tolerance: Diameter Tolerance: ISO f7, f8, h8, or customized; Straightness: ≤ 0.2mm/m
Delivery Condition: As Rolled, Induction Hardened (IH), Quenched + Tempered (Q+T)
Salt Spray Test: 48–120 hours (as per customer request)
Manufacturing Process
Raw Material Selection – High-quality CK45 or equivalent seamless steel pipe
Peeling – Removal of surface imperfections
Grinding – Achieving required diameter & straightness
Chrome Plating – High-precision hard chrome coating
Polishing – Achieving mirror-like surface
Inspection – Dimensional, hardness, and salt spray testing
Packing – Rust-preventive oil, plastic caps, PVC wrap, seaworthy export packing
Applications
Hydraulic and pneumatic cylinder manufacturing
Mobile machinery and lifting equipment
Mining and heavy industry
Agricultural equipment and snowplows
Machine tool guide rods
Telescopic cylinder inner tubes and outer sleeves
Particularly suited for applications requiring high corrosion resistance, surface hardness, and dynamic strength under load
Advantages
Direct Factory Supply – Professional hollow cylinder rod factory with complete cold drawing, plating, and polishing lines
Customized Hollow Bar Solutions – For lighter-weight piston applications and telescopic cylinder use
Strict Quality Control – Salt spray testing, surface inspection, ultrasonic flaw detection, and mechanical testing
Quick Turnaround & Global Shipping – Efficient lead time and flexible export packaging options
Competitive Pricing – Save cost while maintaining consistent high performance
Packing & Delivery

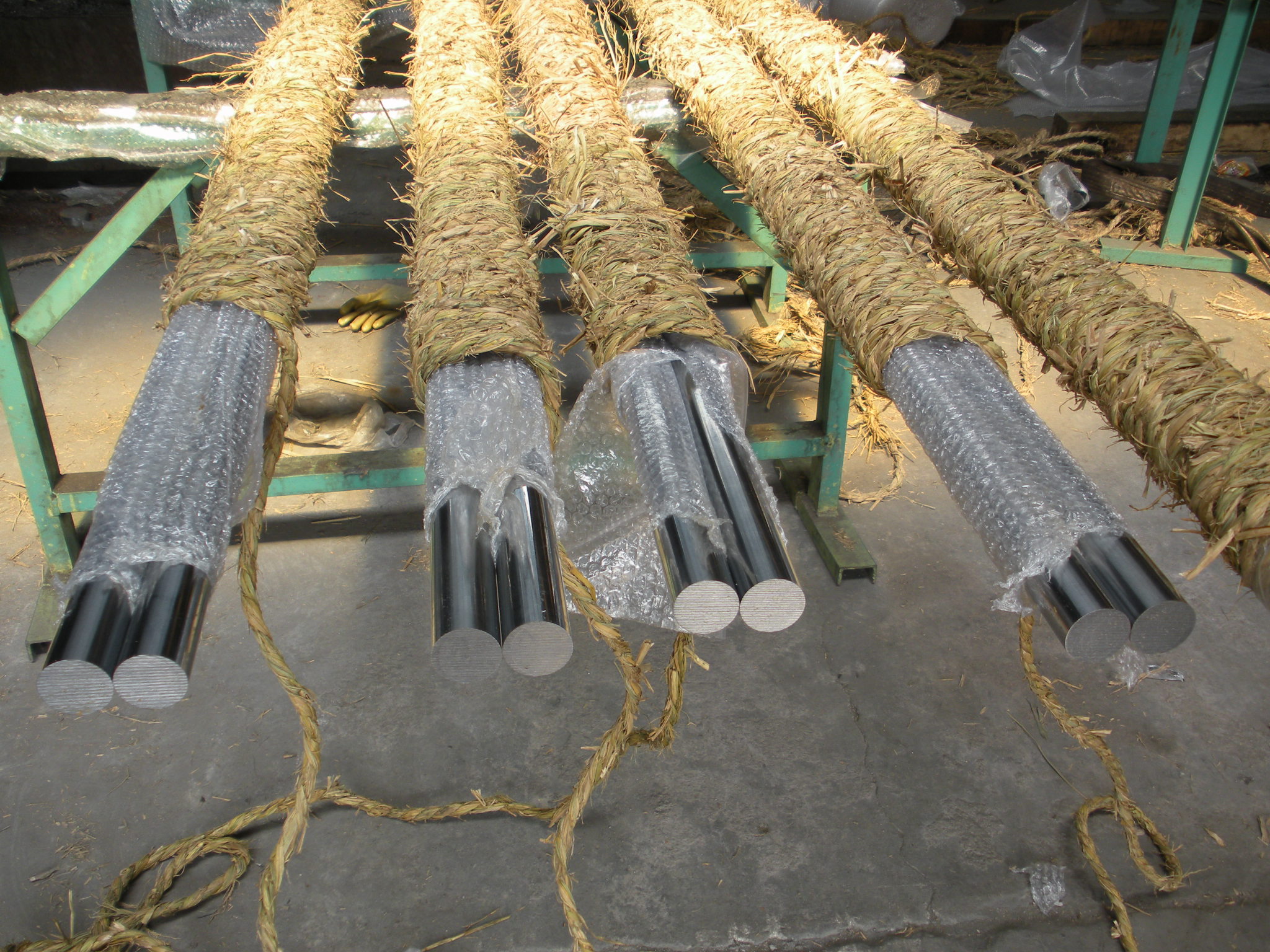

Packing: Each piece is coated with anti-rust oil, capped at ends, bundled with steel straps, wrapped in PVC or woven bags
MOQ: 1 Ton per size
Lead Time: 20–35 days depending on raw material availability
Marking: CX / Grade / Size / Heat No. / Batch No.
FAQ
Q1: Do you supply both solid and hollow chrome plated rods?
A: Yes, we offer both types. Hollow rods are made from seamless tubes with chrome plating, while solid rods are machined from solid steel bars.
Q2: What is your standard chrome plating thickness?
A: Standard chrome thickness is 20–30μm, but we can provide up to 50μm upon request.
Q3: Are your rods suitable for telescopic cylinders?
A: Absolutely. Our CK45 hard chrome hollow rods are ideal for multi-stage hydraulic cylinder use.
Q4: Can you meet ISO or OEM requirements?
A: Yes, we support ISO-compliant manufacturing and OEM customization.
Q5: Do you export globally?
A: Yes, we export to more than 30 countries including Germany, Brazil, Turkey, India, and Southeast Asia.
Company Introduction
CHENGXIN is a professional manufacturer of cold drawn steel tubes, hard chrome plated rods, and hydraulic cylinder components since 2002. With over 32,000㎡ of production space and 12 workshops, we operate advanced chrome plating lines, cold drawing benches, and in-house polishing and machining centers. Whether you need solid piston rods, chrome hollow rods, or custom hydraulic cylinder barrel parts, CHENGXIN is your trusted supplier.
Commodity: CK45 hard Chrome Plated Rod
Size: 8mm-250mm
Available Steel Grade:
| AISI/SAE: | 1020,1026,1045,1518,1524,4140 |
| EN: | E355,E470,C45E,20MnV6 |
| DIN: | ST52, ST52.3, ST52.4 |
| JIS: | S45C, CK45, STKM 13C |
Manufacture Method: Peeled+Grinding+Hard chrome plating+Polishing
Delivery Condition: As rolled, Induction Hardened, Quenched+Tempered
Thickness of Chromed layer: 20 microns-50 microns as per request.
Hardness of Chromed layer: HV800 min
Salt spray test: 48-120 hours as per request.
