High-Precision Honed & Skived Roller Burnished Tubes

A honed tube or skived & roller burnished tube is a seamless steel tube designed specifically for hydraulic and pneumatic cylinder barrels. These precision tubes are processed to ensure extremely tight internal diameter (ID) tolerances, such as H7, H8, or H9, and superior ID surface roughness like Ra ≤ 0.20μm or Ra ≤ 0.35μm.

Honing vs. Skiving & Roller Burnishing: Which to Choose?

Honed Tubes: The honing process creates a distinct cross-hatch pattern on the internal surface. This pattern is excellent for oil retention, extending the lifespan of cylinder seals. Ideal for heavy-duty industrial cylinders.
Skived & Roller Burnished Tubes (SRB): This process removes metal (skiving) and then compresses the surface (roller burnishing). It produces a much harder, smoother, and more wear-resistant internal surface compared to honing, making it perfect for high-speed or high-pressure applications.

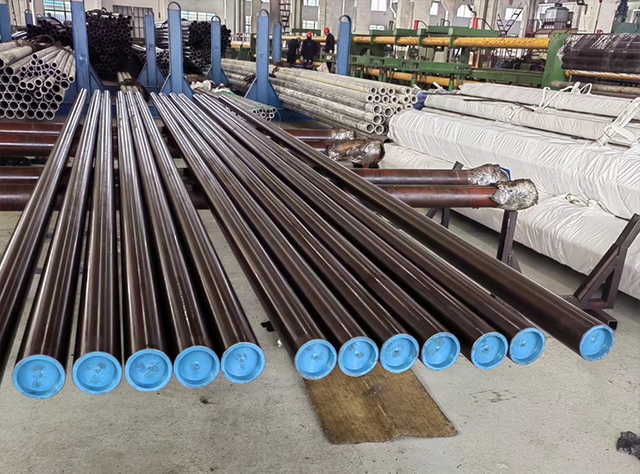

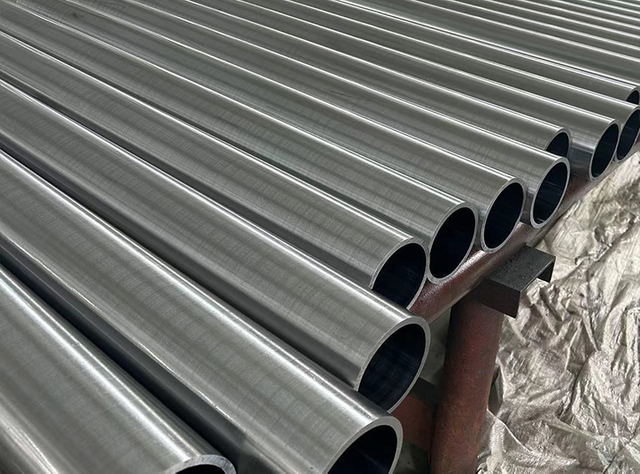

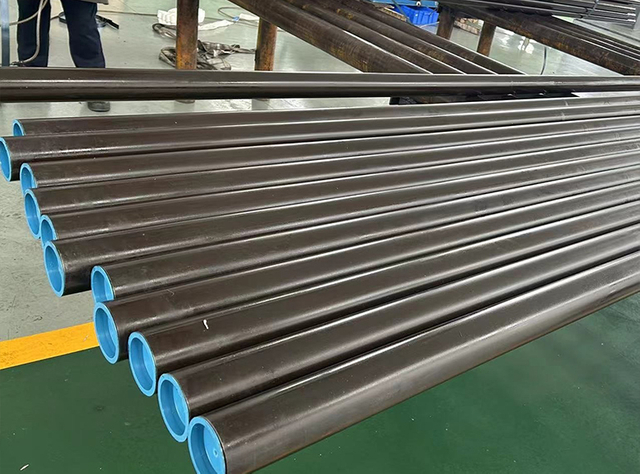

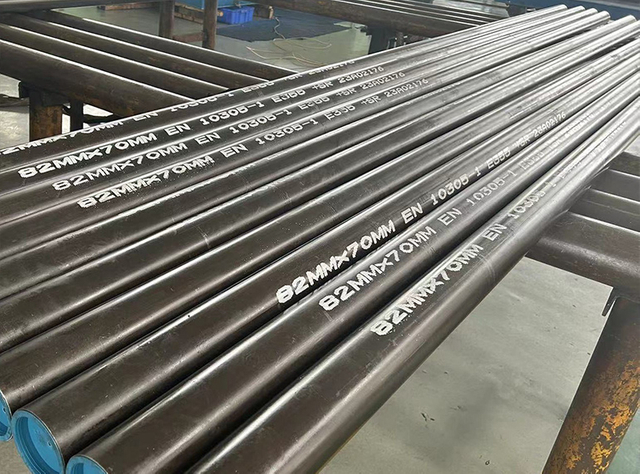

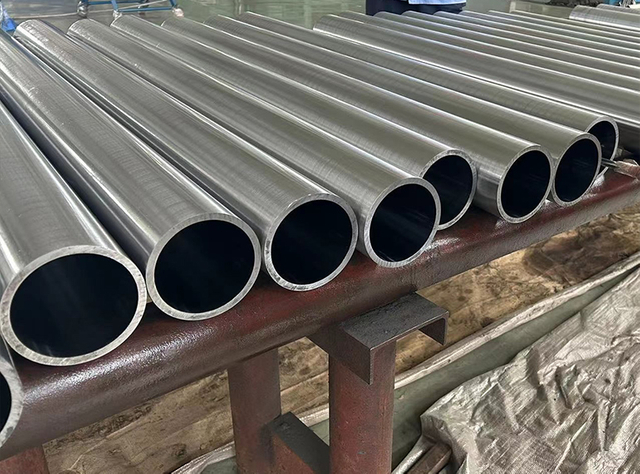

Seamless Honed Steel Tube for Hydraulic Cylinder Barrel

ID Tolerance Level of Our Honed & Skived Tubes

ID Range (mm)	H7 Tolerance	H8 Tolerance	H9 Tolerance	H10 Tolerance
18 < ID ≤ 30	+0/+0.021	+0/+0.033	+0/+0.052	+0/+0.084
30 < ID ≤ 50	+0/+0.025	+0/+0.039	+0/+0.062	+0/+0.100
50 < ID ≤ 80	+0/+0.030	+0/+0.046	+0/+0.074	+0/+0.120
80 < ID ≤ 120	+0/+0.035	+0/+0.054	+0/+0.087	+0/+0.140
120 < ID ≤ 180	+0/+0.040	+0/+0.063	+0/+0.100	+0/+0.160
180 < ID ≤ 250	+0/+0.046	+0/+0.072	+0/+0.115	+0/+0.185
250 < ID ≤ 315	+0/+0.052	+0/+0.081	+0/+0.130	∕

Standard Size Range for Honed Hydraulic Cylinder Tubes

Outer Diameter (OD) x Inner Diameter (ID) in mm
33*25	70*60	90*80	112*100	139.7*114.3	190*160	265*215
35*25	72*60	92*80	115*100	140*120	184.15*165.1	245*220
40*32	75*60	95*80	118*100	145*120	200*170	270*220
42*32	73*63	100*80	120*100	133.35*120.65	200*180	273*220
45*35	75*63	100*85	125*100	140*125	210*180	254*228.6
50*40	76*63	101.6*88.9	127*100	150*125	220*190	260*230
55*40	76.2*63.5	100*90	114.3*101.6	152*125	230*200	270*230
55*45	80*65	102*90	127*101.6	150*130	235*200	275*230
60*50	80*70	105*90	120*105	160*140	240*200	280*230
63*50	82*70	108*90	125*110	170*140	245*200	300*250
65*50	85*70	110*90	130*110	170*150	250*200	325*240
70*50	90*75	105*95	140*110	180*150	260*210	325*260
63.5*50.8	88.9*76.2	110*100	127*114.3	180*160	260*215	325*280

Honed or skived & roller burnished tube

S45c C45e Ck45 1045 H8 Seamless Honed Steel Tube for Hydraulic Cylinder Barrel

Brief: Honed hydraulic cylinder tube is a kind of smooth bore steel tube used to manufacture hydraulic cylinder barrels that is the core part of a piece of hydraulic cylinder.
E355 Seamless Honed Steel Tube for Hydraulic Cylinder Barrel

Brief: Honed tube is a kind of smooth bore steel tube used to manufacture hydraulic cylinder barrels that is the core part of a piece of hydraulic cylinder.
SAE 1026 Seamless Honed Steel Tube for Hydraulic Cylinder Barrel

Brief: Honed hydraulic cylinder tube is a kind of smooth bore steel tube used to manufacture hydraulic cylinder barrels that is the core part of a piece of hydraulic cylinder.
DIN 2391-2 St52 Honed Hydraulic Cylinder Tube

Brief: Honed tube is a kind of precision steel tubes mainly used as cylinder barrel.
SAE1045 Cold Drawn Seamless Honed Tube for Hydraulic Cylinder

Brief: Honed tube is a kind of smooth bore steel tube used to manufacture hydraulic cylinder barrels that is the core part of a piece of hydraulic cylinder.
SAE 1045 Seamless Honed Steel Tube for Hydraulic Cylinder

Brief: Honed tube is a kind of smooth bore steel tube used to manufacture hydraulic cylinder barrels that is the core part of a piece of hydraulic cylinder.
ASTM A519 1020 1026 1045 1518 1524 Cold Drawn Seamless Honed Carbon Steel Tubing

Brief: Honed tube is a kind of smooth bore steel tube used to manufacture hydraulic cylinder barrels that is the core part of a piece of hydraulic cylinder.
